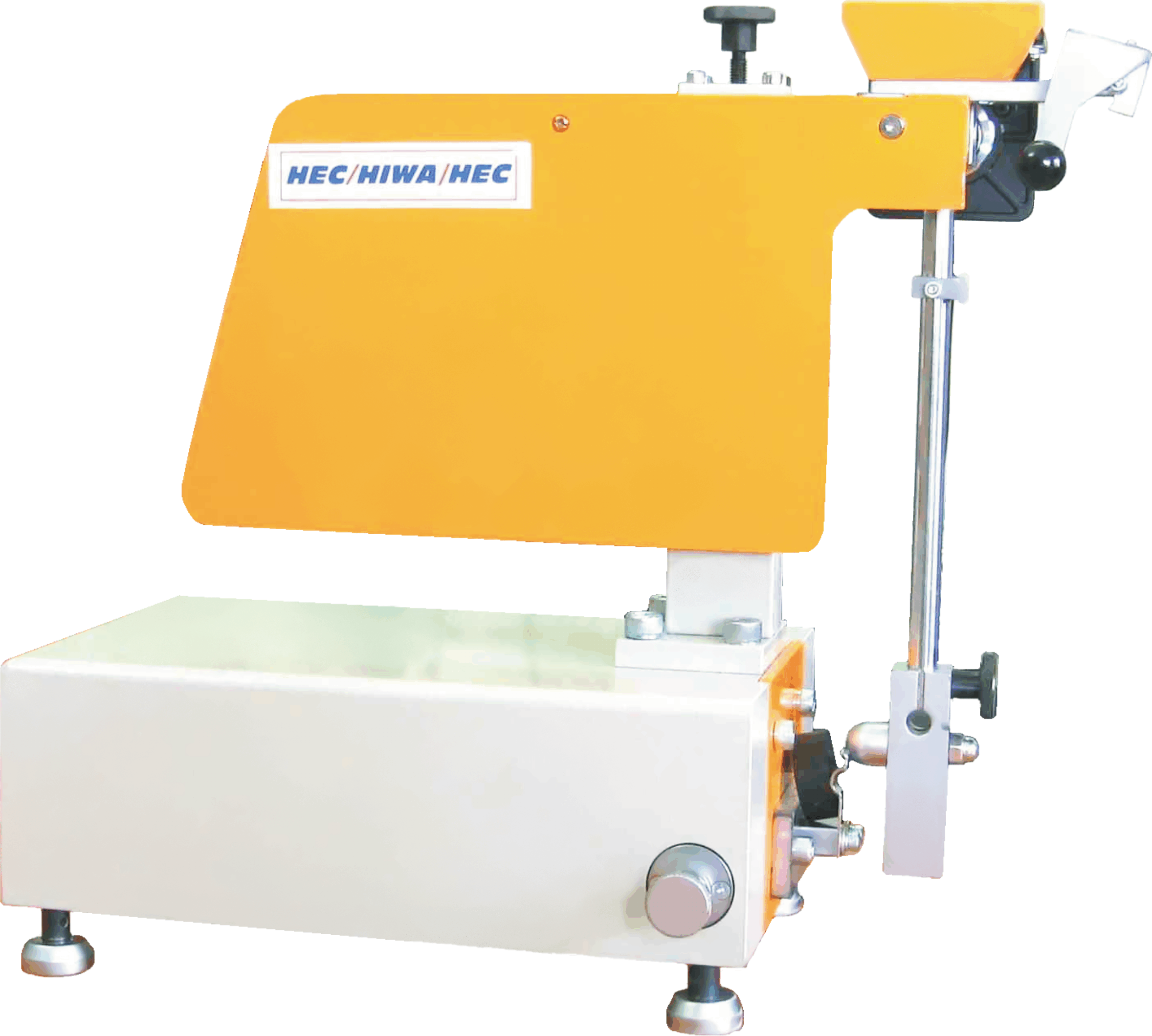

REBOUND RESILIENCE TESTER : HIWA 300

The HIWA 300 Resilience tester conforms with DIN 53512 and is used for determining the resilience characteristics of various materials . Some of materials which can be tested by Hiwa 300 is as follow :
- Rubber products
- Foam products
In this approach , elastic behaviour of materials is tested.Testing is done by impact of a standard weight (hammer) with specified mass and velocity to the specimen and measuring of weight return . The aggregate is so designed that the testing of specimens with various thicknesses is done simply and clamping of specimen is done easily by means of a ratchet mechanism .



Specification : (Download Resilience Specification)
Standards : DIN 53512
Working energy of pendulum : 0.5 J
Impact speed : 2 m/s
Dia. of impact weight : 15 mm
Thickness of specimen : 6-60 mm
Dia. of specimen : 29-53 mm
Weight approx.(without packing) : 28 Kg
Record by : Computer
Computer : Pentium IV or higher
Monitor : LG(17inch)
Printer : HP Laserjet 1018
Software Results : Standard output(Updating by order)
Software OS : Windows 98SE , 2000 , XP , 7
