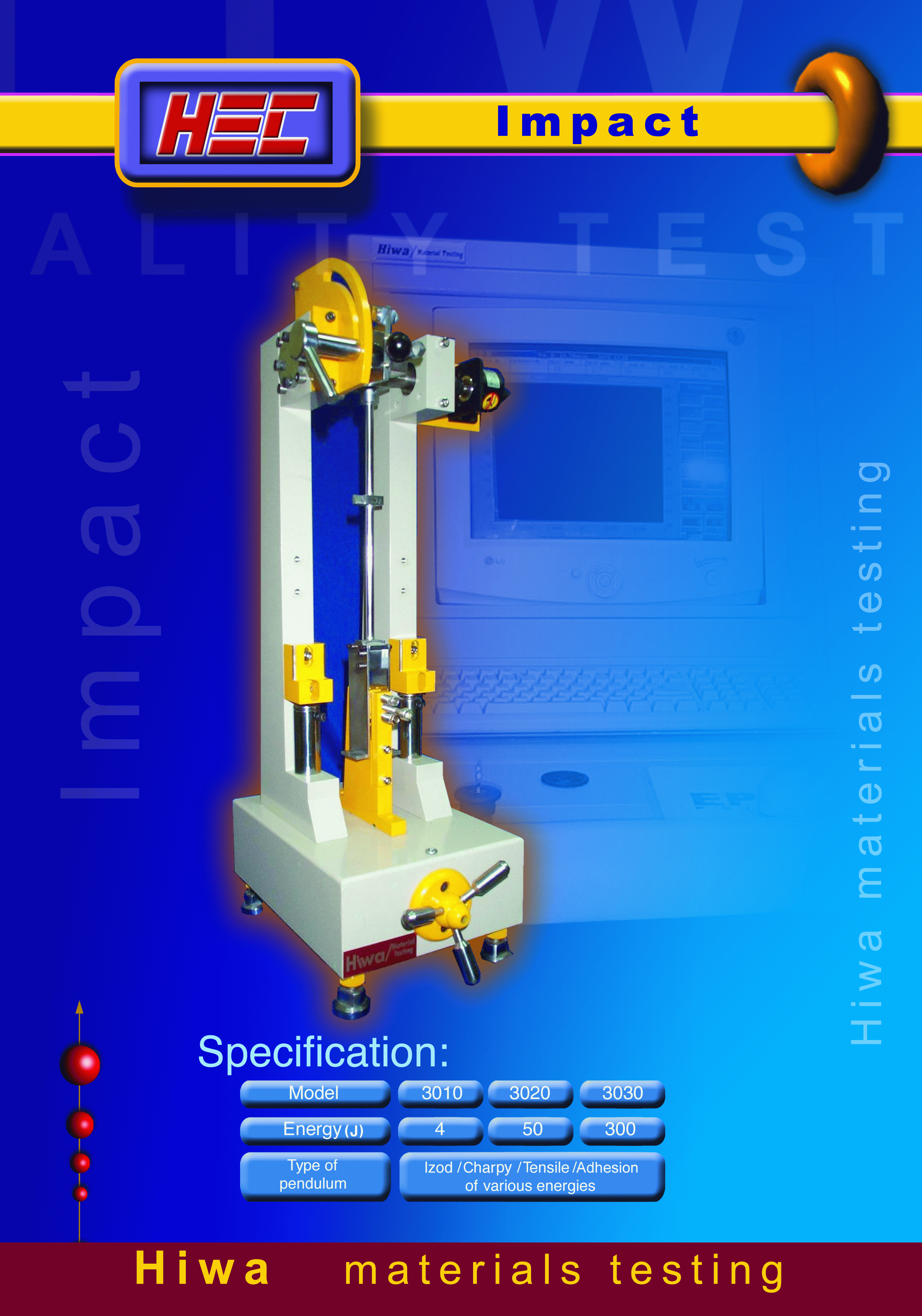

IMPACT TESTING MACHINE : HIWA 301

The HIWA 301 Impact testing machines conforms with standard test methods for IZOD /CHARPY/TENSILE types of pendulum impact tests and is used to investigate the specimen behaviour under impact conditions and for estimating the brittleness, are suitable for :
- Rigid thermoplastics moulding materials and extrusion materials.
- Rigid thermosetting moulding materials .
- Fiber-reinforced thermoset and thermoplastics composites .
- Metals
In this approach , Testing is done by impact of a standard pendulum to the standard specimen and measuring the rose angle of pendulum after breaking the specimen . This machine is computerized and can record the results of test by a software .


Specification : (Download Impact Testing machine Specification)
Standards : ISO 179,180 ,8256
- ASTM D256 ,D6110 ,D1822
Energy of pendulum :
Model 3010 = max. 4 J
Model 3020 = max. 50 J
Model 3030 = max. 300 J
Pendulum types :Izod/Charpy/Tensile impact
Computer : Pentium IV
Monitor : LG(17 inch)
Printer : HP Laserjet 1018
Software Results: Standard output (Updating by order)
Software OS : Windows 98SE,2000,XP,7
