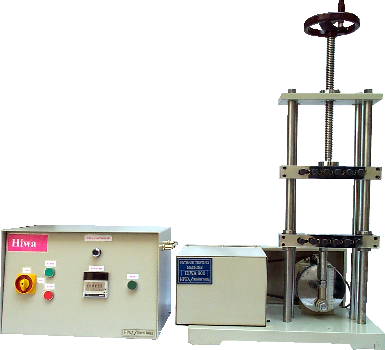

FATIGUE TESTING MACHINE : HIWA 600

The HIWA 600 Fatigue testing machine is used for determination of fatigue behaviour of various rubber compounds .The workpiece is fastened between clamps and then the machine starts it's reciprocating motion . Stroke and speed is continuously adjustable. The machine is equipped with limit counter for stopping the machine after predefined number of revolution . Various workpiece with different lengths can be tested by this machine . Also you can test several specimens together . The speed , stroke and No. of revolutions is fully adjustable . Power is supplied with speed controlled electrical motor .

Specification : (Download Fatigue Specification)
Standards : ISO 6943
No. of specimens : 6
Reciprocating speed : 0-300 rpm
Stroke : 0-60 mm (total displacement :max. 120 mm)
Power : 450 watts
Weight : 70 Kg
